The Reway SHINE is a BIS-certified recessed LED panel downlight, available in 12W, 18W, and 24W, delivering ≥120 lm/w lumen efficacy and CRI ≥80 for crisp, uniform illumination in corporate offices, banks, data centres, and coworking spaces. Engineered for India’s diverse power grid conditions with 220–240V rated voltage, PF >0.95, THD ≤10%, and 50,000 burning hours of maintenance-free performance. As a trusted BIS-certified LED panel downlight manufacturer in Ghaziabad, Reway Innovations combines energy efficiency with NABL-tested photometric performance for commercial building projects across India.

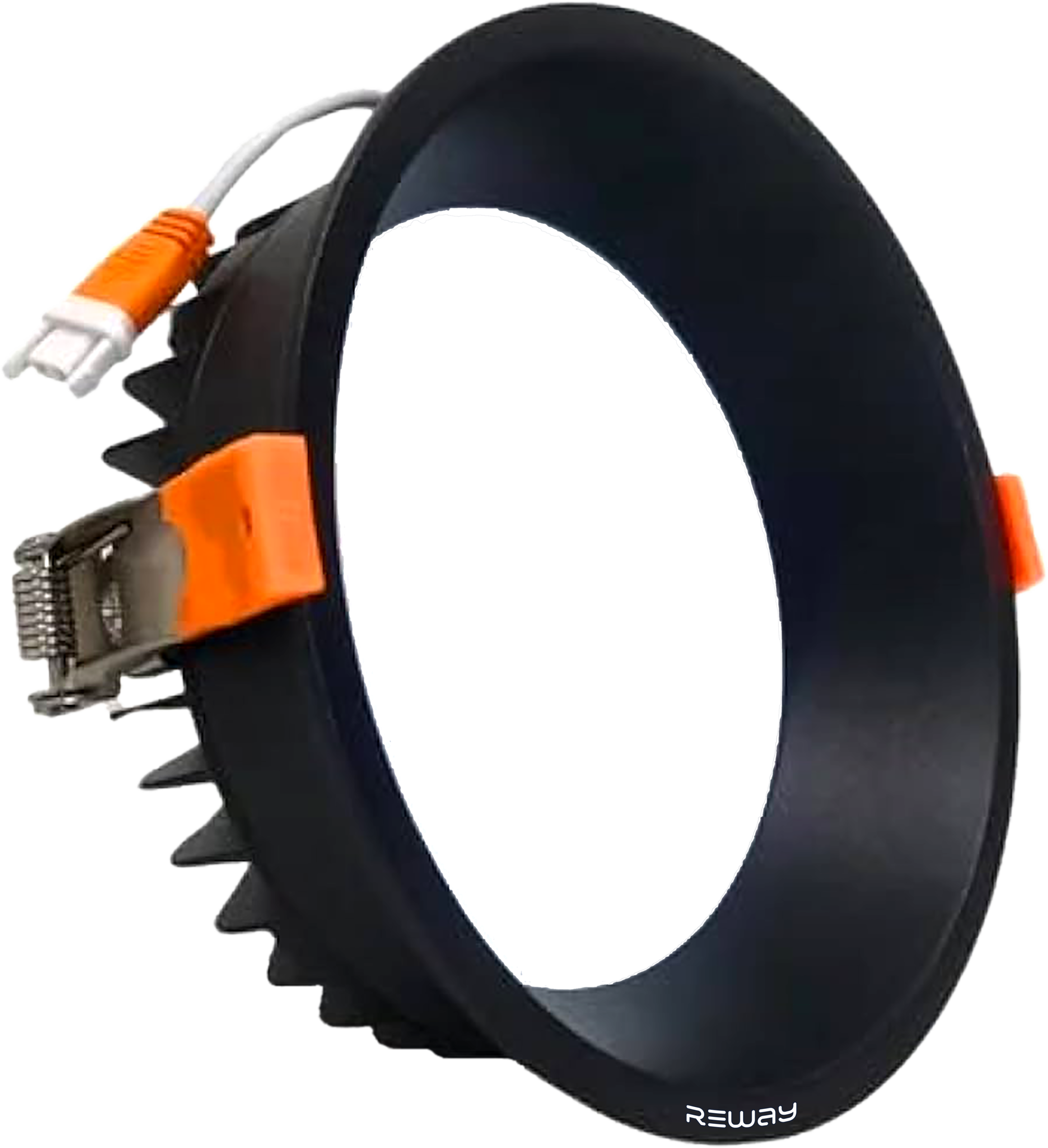

SHINE
The Reway SHINE is a BIS-certified recessed LED panel downlight, available in 12W, 18W, and 24W, delivering ≥120 lm/w lumen…
Features
≥120 lm/W
Operating temp. -10 to +40°C
Life 50,000 burning hours
CRI ≥ 80
IP 20 rating
THD ≤ 10%
Open & Short-Circuit Protection
On Site Service Warranty
Technical Specification
| WATT | RATED VOLTAGE | PF | COLOUR TEMP.(CCT) | DRIVER FREQUENCY |
|---|---|---|---|---|
| 12W | 220V-240V | > 0.95 | 3000K-5700K | 50HZ |
| 18W | 220V-240V | > 0.95 | 3000K-5700K | 50HZ |
| 24W | 220V-240V | > 0.95 | 3000K-5700K | 50HZ |

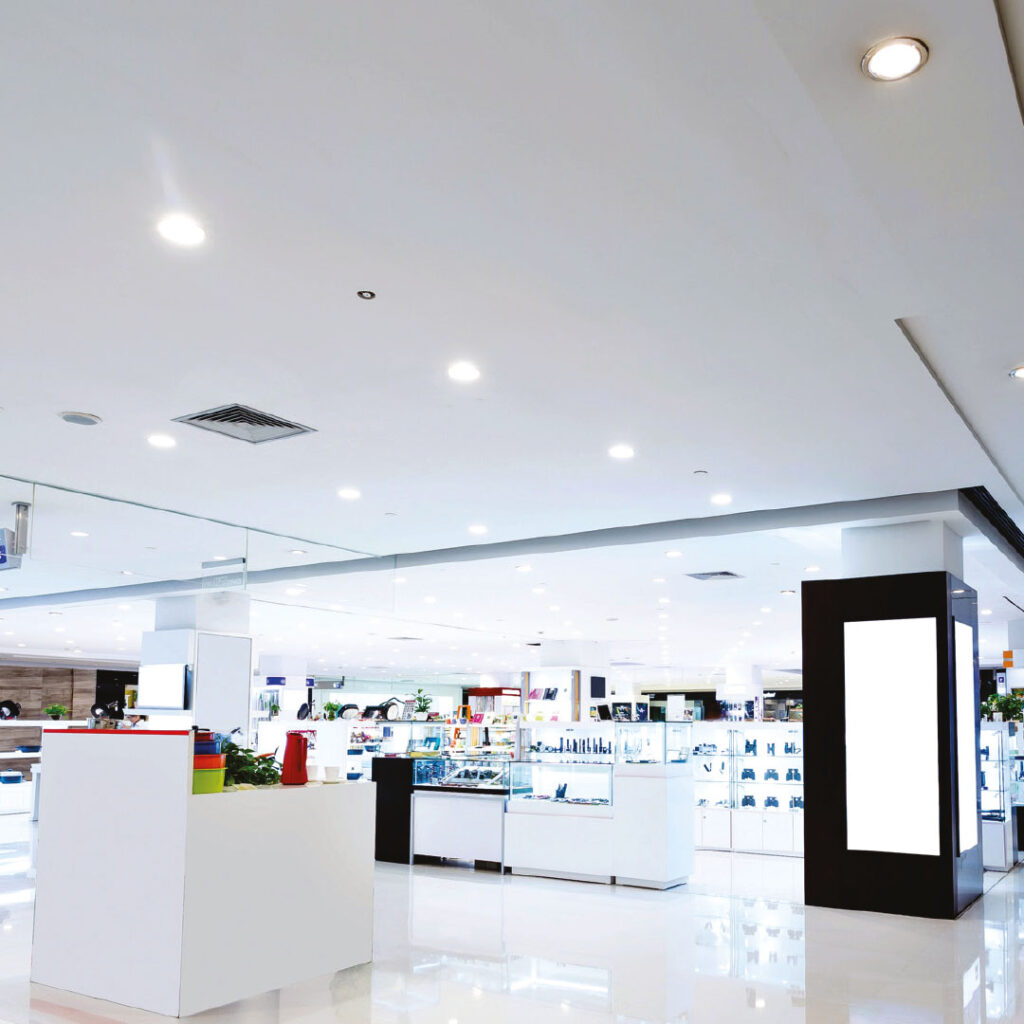

Applications
Data Centres
Offices & Conferences
Coworking Spaces
Banks
