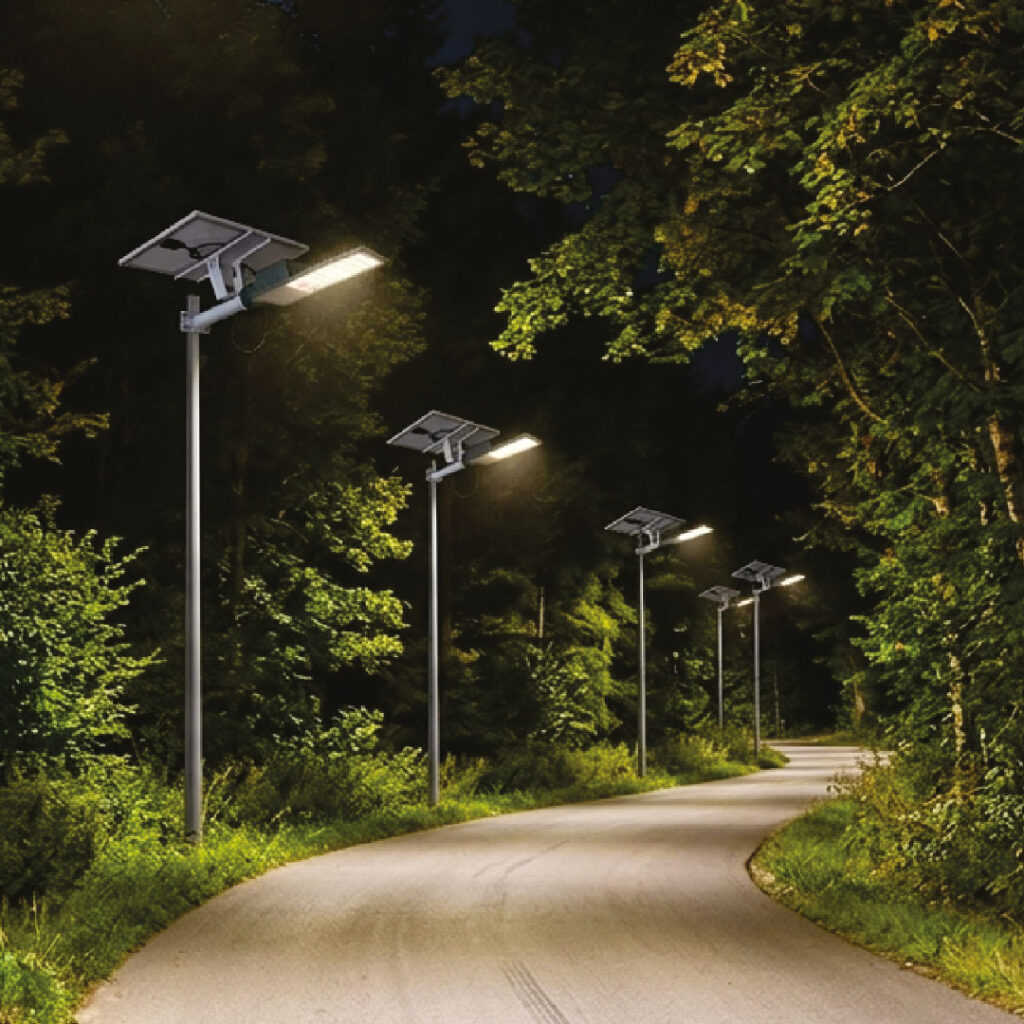

Reway LUMIXX is a BIS-certified semi-integrated solar LED street light, available from 12W to 60W, featuring 125–160 lm/w efficacy, IP66, IK08, LIFEPO4 battery, MPPT charge controller, hybrid AC support, and smart remote monitoring — designed for highways, city roads, and expressways requiring flexible solar lighting infrastructure. With advanced energy management and cloud-based smart monitoring, LUMIXX delivers reliable off-grid and hybrid LED street lighting. Every LUMIXX is BIS certified by Reway Innovations with full end-to-end quality control.
LUMIXX
Reway LUMIXX is a BIS-certified semi-integrated solar LED street light, available from 12W to 60W, featuring 125–160 lm/w efficacy, IP66,…
Features
125-160 lm/w
THD 10%
IP 66 rating
IK 08
Integrated all in one design
MPPT Charge Controller
Hybrid Operation
Smart Monitoring
Technical Specification
| WATT | PANEL CAPACITY | BATTERY | MOTION SENSOR | DRIVER FREQUENCY |
|---|---|---|---|---|
| 12W | 40Wp | 12 AH LIFEP04 | ||
| 15W | 60Wp | 18 AH LIFEP04 | ||
| 20W | 50Wp | 24 AH LIFEP04 | ||
| 24W | 60Wp | 24 AH LIFEP04 | ||
| 25W | 60Wp | 30 AH LIFEP04 | ||
| 30W | 60Wp/60Wp HYBRID/75Wp | 24/30/36 AH LIFEP04 | ||
| 35W | 100Wp HYBRID | 42 AH LIFEP04 | ||
| 40W | 75Wp | 30/36 AH LIFEP04 | ||
| 60W | 100Wp | 42 AH LIFEP04 |
Applications
Highways
Approach Roads
City Roads
Expressway
