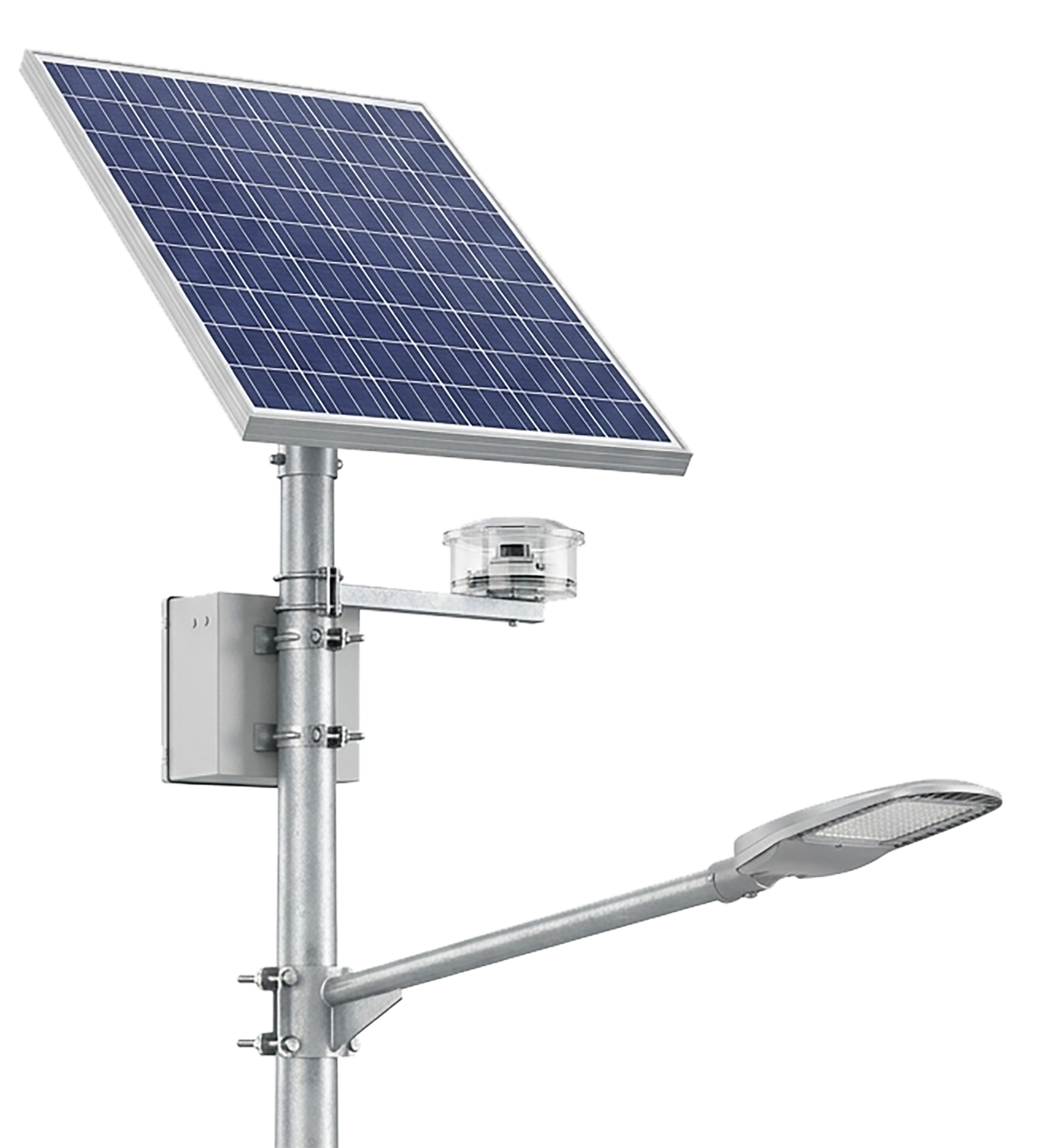

Reway BEAMAX is a complete standalone solar LED street light system, available from 20W to 180W with oct/tubular pole, featuring 125–160 lm/w efficacy, IP66, IK08, advanced charge controller, hybrid 230V support, and smart monitoring — India’s most capable standalone solar street light system for highways, expressways, and large municipal projects. BEAMAX includes the complete pole, panel, battery, and fixture for rapid deployment in off-grid or hybrid environments. Manufactured by Reway Innovations with BIS certification and Vishal Technopower’s EPC project management expertise.
BEAMAX
Reway BEAMAX is a complete standalone solar LED street light system, available from 20W to 180W with oct/tubular pole, featuring…
Features
125-160 lm/w
THD 10%
IP 66 rating
IK 08
Integrated all in one design
MPPT Charge Controller
Hybrid Operation
Smart Monitoring
Technical Specification
| WATT | PANEL CAPACITY | BATTERY | Pole height | DRIVER FREQUENCY |
|---|---|---|---|---|
| 20W | 75Wp Poly | 75AH Lead Acid Battery | 6m tubular Pole Complete | |
| 30W | 120Wp Poly | 100AH Lead Acid Battery | 6m tubular Pole Complete | |
| 45W | 200Wp Poly | 200AH Lead Acid Flooded | 6m Oct Pole | |
| 100W | 2x250 Wp Poly | 2x150AH T Gel | 10m Oct Pole | |
| 180W | 2x445 Wp Poly | 12.8V 320AH LFP | 10m Oct Pole |

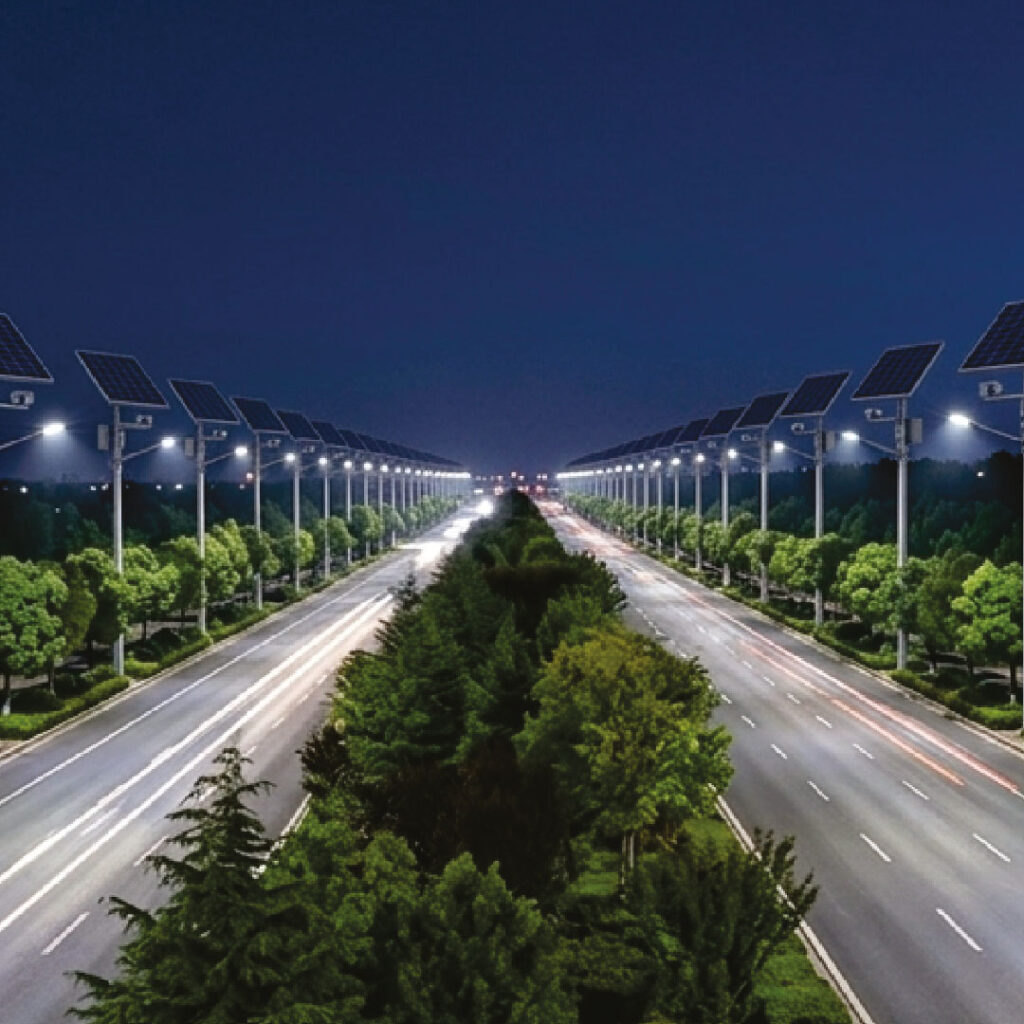

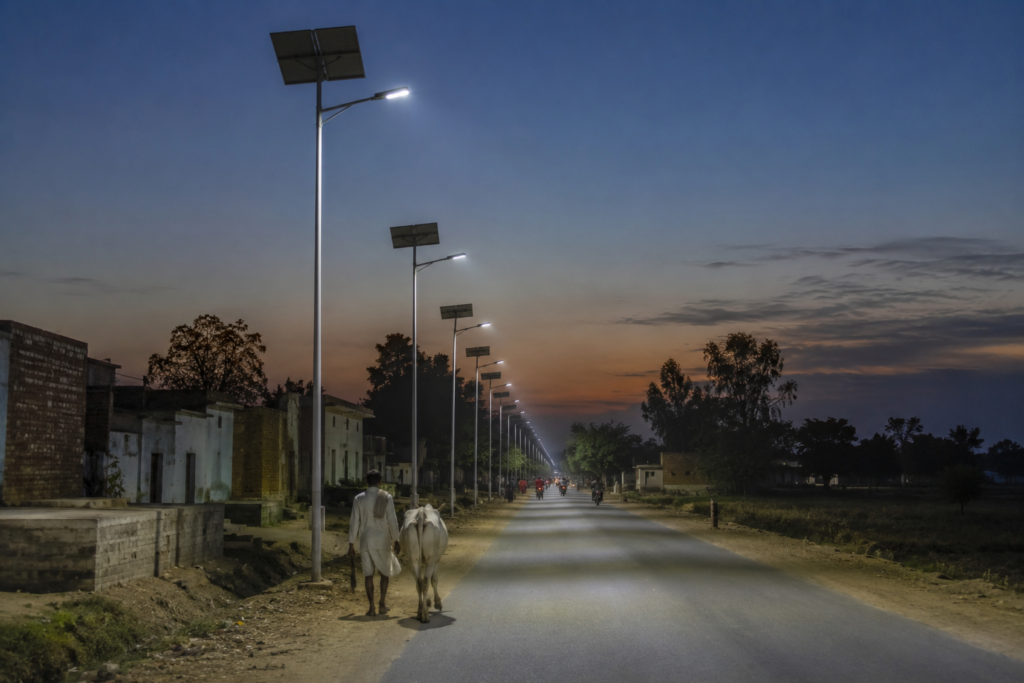

Applications
Highways
Approach Roads
City Roads
Expressway
